1.Technical Parameters
|
Model |
BX-Y-800L |
General Drawing No. |
BX-Y-800L-001（2022.03.30） |
Product type |
IBC |
|
IBC code |
31A |
Packaging |
Y |
Maximum loading and unloading pressure |
20 |
|
design temperature（℃） |
Normal |
External dimension （L×W×H，mm） |
1130（±3）×1130（±3）×1366（±5） |
Capacity（L） |
800（+30） |
|
Material（grades，material standards） |
SUS304 JIS G4305 |
wall thickness |
2.5 |
minimum wall thickness |
2.0 |
|
Max.total mass |
1344 |
Self-weight |
246（±5） |
Max.loading mass |
1098 |
|
Max.stacking load |
1344 |
Media density |
≤1400 |
Drop test height |
1.4 |
|
Hydraulic test pressure |
65/200 |

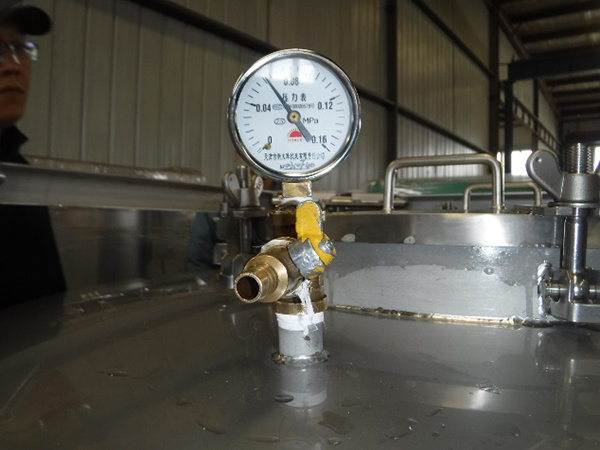

Leakage test pressure |
20 |
Packaging material |
/ |
|
SAFETY release device |
DN15 30kPa |

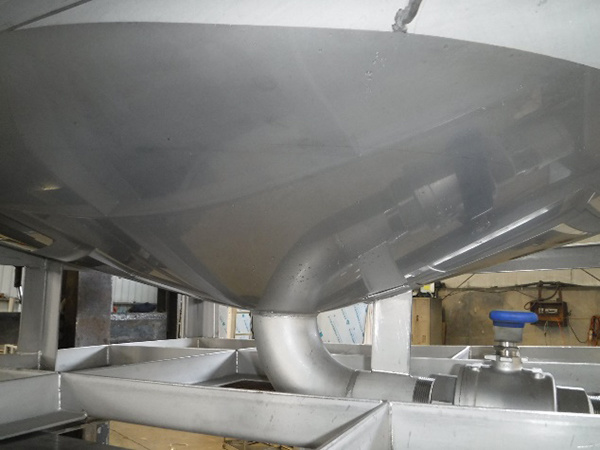

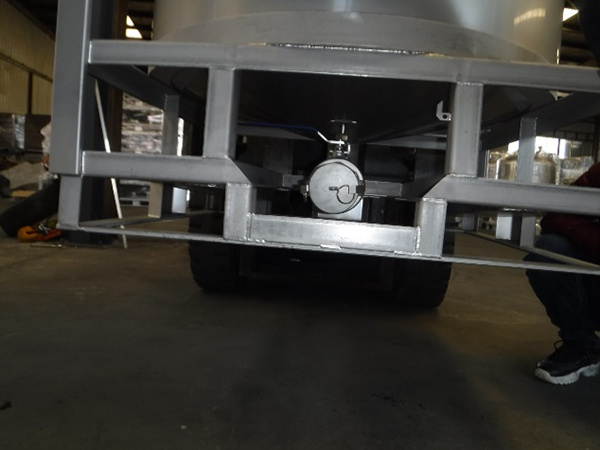

Valve type&material |
1.0MPa 80A ball valve |
Sealing materials |
PTFE+EPDM |
|
contents |
marine paint |
contents UN code |
/ |
Hazardous category |
/ |
2. Test content and test report

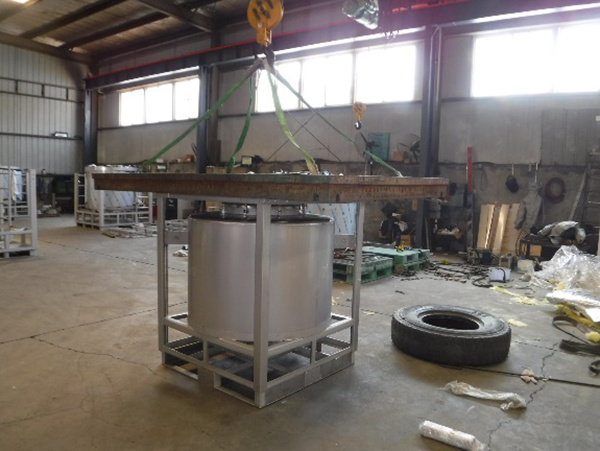

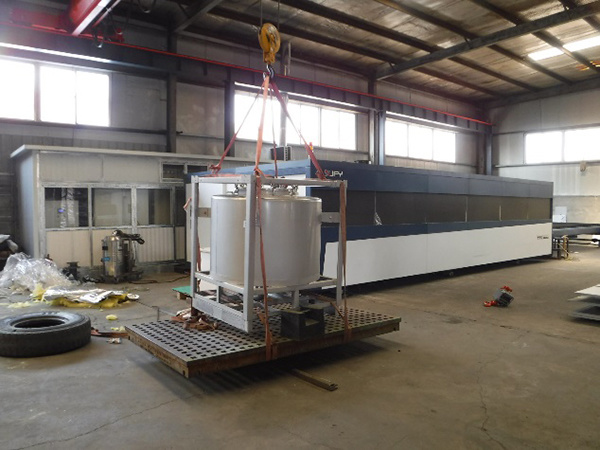

1)stacking test
Result：qualified

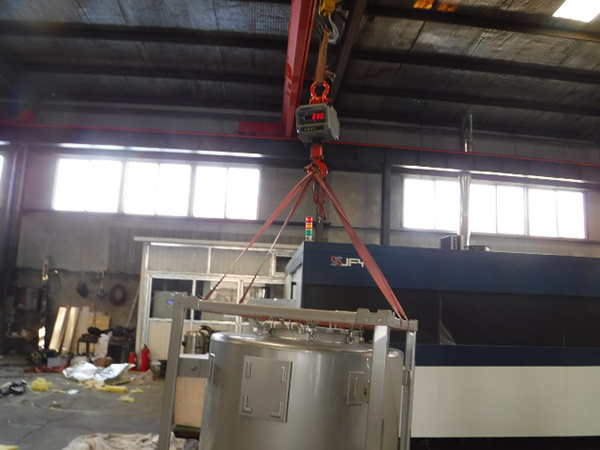

2)Top lift test
Result：qualified

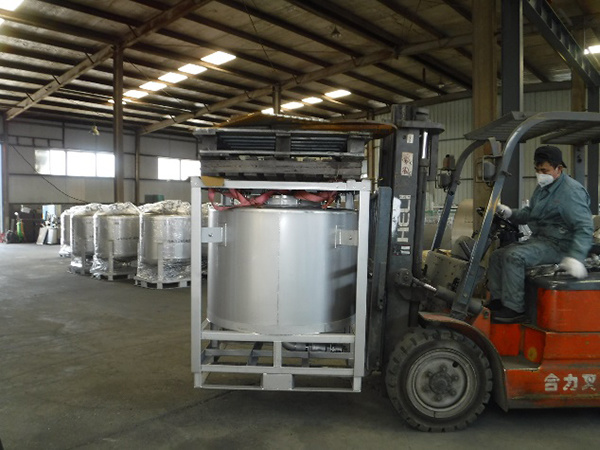

3)Bottom lift test
Result：qualified

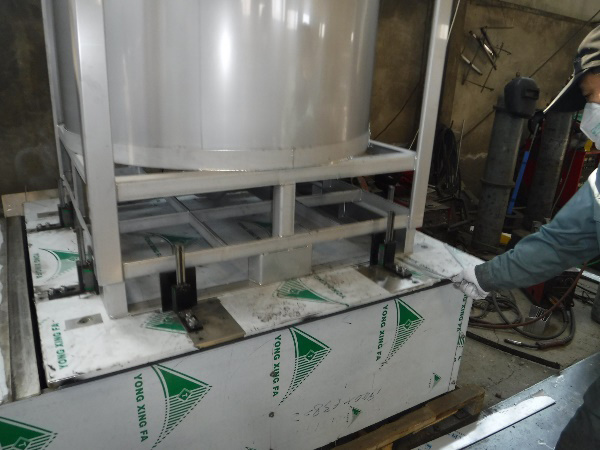

4)Vibration test
Result：qualified
5)Drop test
Result：qualified
6)Oil pressure test
Result：qualified

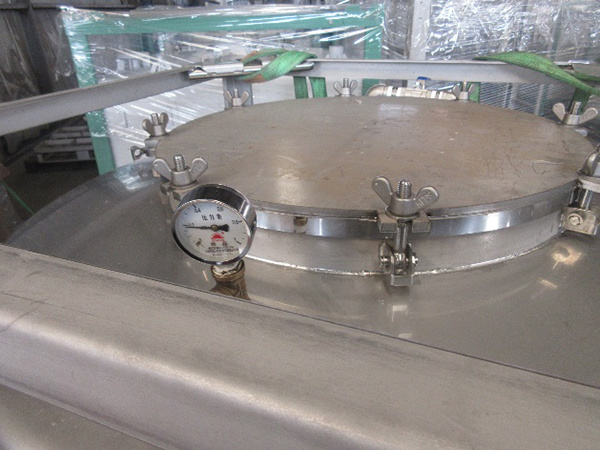

7)Leakage test
Result：qualified
8)Others

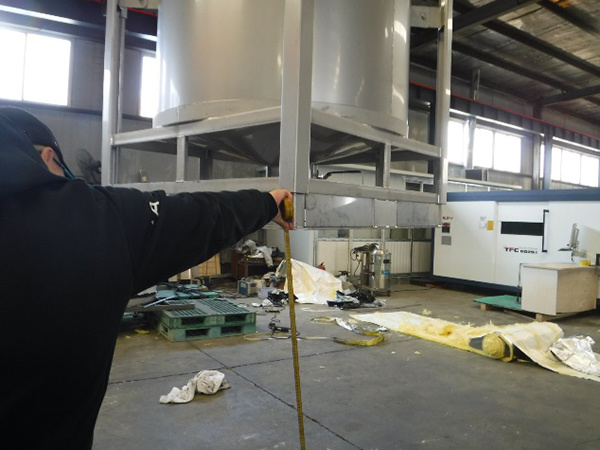

Weighing，welding，dimension inspection pass
